Maximizing CNC Tool Holder Lifespan

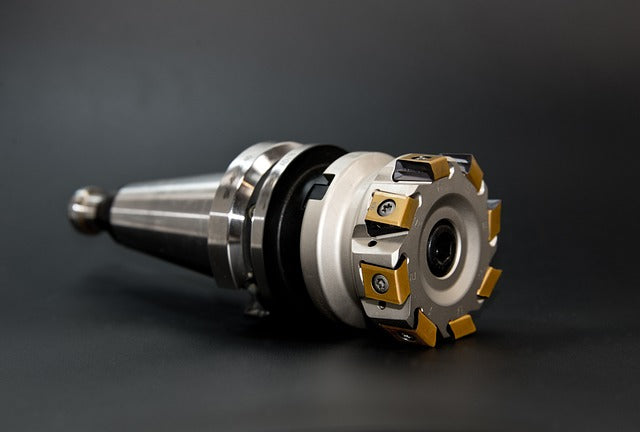

For CNC operators and maintenance personnel, understanding the importance of tool holder maintenance is essential. CNC tool holders play a critical role in machine tools, securing cutting tools that rotate at high speeds, cut through dense materials, and endure significant force. With the right care, tool holders last longer, enhance precision, and reduce overall operating costs.

In this guide, we’ll cover essential practices to keep CNC tool holders in top shape, ensuring higher accuracy, fewer replacements, and smoother operations.

1. Regular Cleaning: The Foundation of CNC Tool Holder Maintenance

Keeping CNC tool holders clean is one of the simplest yet most effective ways to extend their lifespan. Chips, debris, and coolant residues can build up over time, causing improper fit, faster wear, and reduced accuracy. By regularly cleaning tool holders, operators can improve machining precision and reduce downtime due to malfunctions.

• After Each Use: Wipe down the tool holder with a soft cloth to remove particles and excess coolant.
• Weekly Cleanings: Use a mild cleaning solution or specialized tool holder cleaner to thoroughly remove residue. Avoid harsh chemicals that could degrade the tool holder material.
• Deep Cleaning: Monthly, or based on usage frequency, disassemble the tool holder according to the manufacturer’s guidelines and use compressed air to remove finer particles from each component.

2. Lubrication: Keeping Components Moving Smoothly

Lubrication minimizes friction, reducing wear and tear on moving parts within the tool holder. Proper lubrication ensures that tool holders stay cooler, last longer, and operate more smoothly. Over-lubrication, however, can attract dust and debris that could affect performance, so it’s crucial to follow the manufacturer’s guidelines.

• Choose the Right Lubricant: Always use lubricants specified by the manufacturer to prevent chemical incompatibility.
• Regular Application: Apply lubricant every few weeks or as per usage frequency, focusing on clamping mechanisms like collets or chucks.
• Avoid Over-Lubrication: Use lubricant sparingly to avoid buildup and potential interference with spindle performance.

3. Inspect for Wear and Tear: Catch Problems Early

Regular inspections help identify issues before they escalate. A worn-out tool holder can cause vibrations, poor surface finishes, and machining inaccuracies. Even slight imperfections in tool holders can lead to reduced accuracy, which impacts part quality over time.

• Scratches and Dents: Check for signs of mishandling, such as scratches or dents, which can reduce tool holder stability. Replace any tool holder with significant damage.
• Check the Taper: Irregularities on the taper surface impact spindle fit and precision. Use a precision gauge periodically to check taper dimensions.
• Corrosion Signs: Address any corrosion promptly to maintain accuracy, replacing parts if corrosion becomes extensive.

4. Balance the Tool Holder for Stability and Accuracy

For high-speed applications, a balanced tool holder is essential to prevent vibration, enhance stability, and maintain machining precision. Balanced tool holders not only improve accuracy but also reduce stress on machine components caused by vibrations.

• Dynamic Balancing: Periodically check the balance of tool holders, especially after maintenance, to maintain high accuracy at elevated RPMs. Balancing equipment allows for precise adjustments.
• Recheck After Repairs: If parts are replaced or the tool holder is repaired, rebalance it before putting it back into service.

5. Proper Storage: Avoid Environmental Damage

Improper storage can lead to rust, misalignment, and accidental damage. Tool holders should be stored in a clean, dry area to prevent issues related to moisture and accidental impacts. Organized storage not only extends tool holder life but also keeps the workspace safer and more efficient.

• Dedicated Storage Racks: Use racks or cabinets specifically designed to hold tool holders securely and prevent physical damage.
• Humidity Control: Moisture can lead to corrosion, so store tool holders in areas with controlled humidity or use silica gel packets to reduce moisture.
• Prevent Dropping: Ensure tool holders are stored securely to avoid accidental drops that may cause misalignment or surface damage.

6. Check Clamping Force: Essential for Performance

Tool holders require specific clamping force to keep tools steady during machining. Over time, this force may diminish, affecting both performance and safety. Regularly calibrating clamping force prevents tool slippage and potential workpiece damage during high-speed machining.

• Regular Calibration: Use a clamping force measurement device to confirm that the tool holder meets the manufacturer’s recommended force.
• Replace Worn Components: If clamping force cannot be adjusted to meet specifications, replace components like springs or collets as necessary.

7. Replace Worn or Damaged Parts Promptly

Tool holders comprise various parts, including collets, nuts, and bearings, which wear out over time. Promptly replacing these worn components preserves tool holder performance and reduces the risk of larger issues.

• Identify Replaceable Components: Parts like collets and seals typically wear out faster, so keep replacements ready.
• Follow Manufacturer Guidelines: Use compatible replacement parts to ensure compatibility and maintain high-speed machining integrity.
• Avoid Substitutes: Non-OEM parts may reduce compatibility, leading to compromised performance.

8. Training Operators: Ensuring Proper Handling and Maintenance

Even the best-maintained tool holder is at risk if handled improperly. Training operators on handling techniques and maintenance practices prevents many avoidable issues. By investing in operator training, businesses can avoid unnecessary maintenance costs and reduce downtime.

• Teach Proper Handling Techniques: Reduce risks of accidental drops or damage to sensitive parts through proper handling training.
• Schedule Training Sessions: Regular training sessions help operators stay updated on best practices and reinforce vigilance in identifying wear.
• Encourage Reporting: Encourage operators to report any irregularities they observe, reducing the likelihood of undetected damage.

Wrapping Up: The Benefits of Regular CNC Tool Holder Maintenance

Maintaining CNC tool holders through regular cleaning, lubrication, inspections, balancing, and proper storage maximizes their lifespan and ensures optimal performance. By establishing a regular maintenance routine, machine shops can reduce unexpected costs, improve machining precision, and keep production running smoothly.
