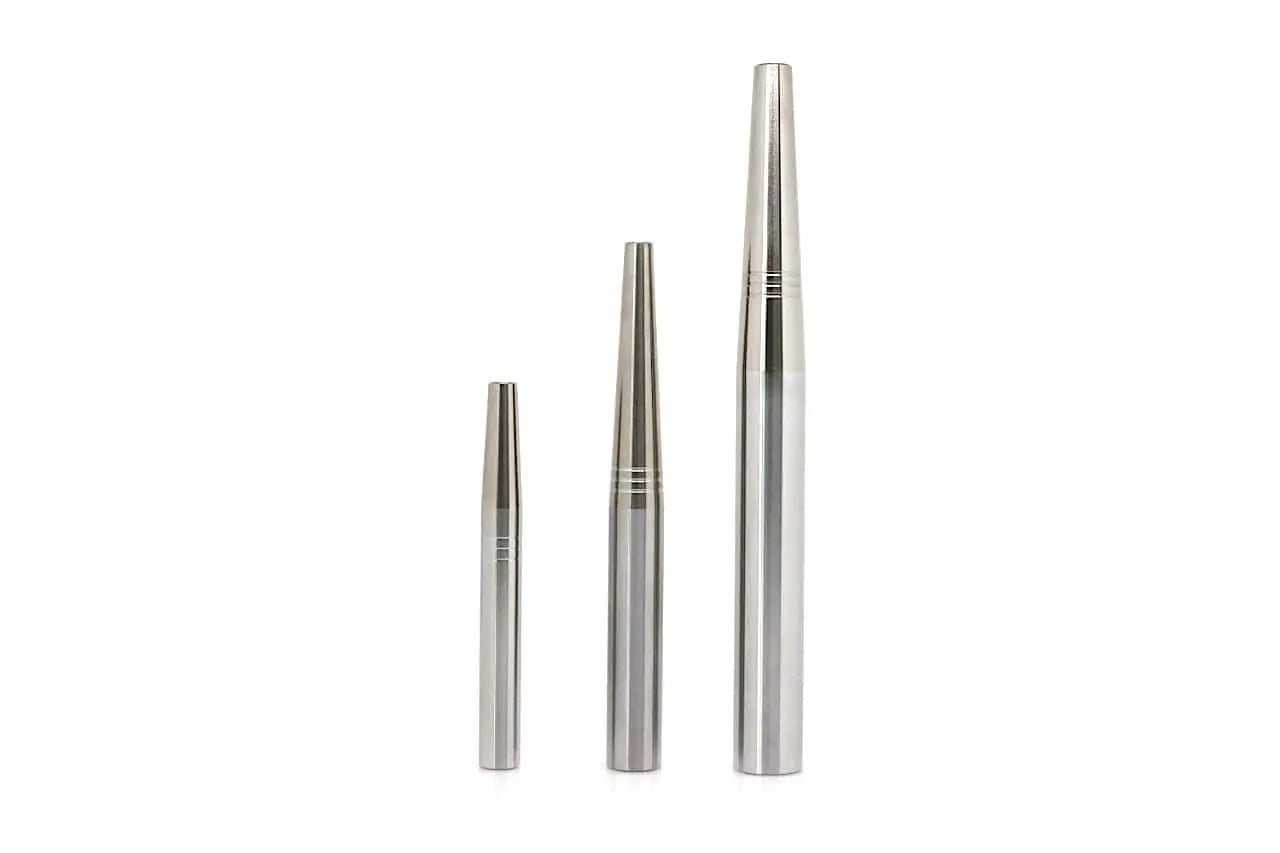

Tool Holder Extensions: Unlocking Precision and Accessibility in Modern Machining

In today’s manufacturing landscape, precision and adaptability are critical to tackling the challenges of complex geometries and hard-to-reach machining areas. Tool holder extensions step in as indispensable components, offering extended reach, flexibility, and precision to meet the demands of advanced machining tasks.

This guide explains what tool holder extensions are, when to use them, their advantages, and what to consider when selecting the right ones for your needs.

What Are Tool Holder Extensions?

Tool holder extensions are components designed to increase the reach of cutting tools. Imagine working on a deep cavity or a narrow, intricate space where a standard tool holder can’t fit—tool holder extensions bridge that gap, ensuring your cutting tools reach these tricky areas without sacrificing accuracy or stability.

These extensions are often made from robust materials such as high-strength steel, tungsten carbide, or titanium. Their design minimizes deflection, vibration, and heat distortion, allowing for precise and consistent machining.

When Are Tool Holder Extensions Useful?

While not always required, tool holder extensions shine in specific scenarios:

• Machining Deep or Complex Geometries: For parts with deep cavities or intricate designs, they enable tools to reach otherwise inaccessible areas with precision.
• Avoiding Workpiece Interference: Extensions help maneuver around features or protrusions that could obstruct the tool’s path, preventing potential damage.
• Enhancing Tool Versatility: They allow the use of multiple tools with one setup, reducing tool changes and improving operational efficiency.

Why Are Tool Holder Extensions Indispensable?

Tool holder extensions bring more than just added reach; they significantly enhance machining processes:

1. Improved Accessibility: They open up areas that were previously unreachable, enabling more complex designs and operations.
2. Better Tool Performance: By reducing interference, optimizing cutting angles, and evenly distributing forces, extensions prolong tool life and improve surface finishes.
3. Cost Savings: They eliminate the need for custom tooling, offering faster setups and reducing manufacturing expenses.
4. Adaptability for CNC Operations: For multi-axis CNC machines, they add the necessary flexibility to tackle a variety of tasks without compromising precision.

Choosing the Right Tool Holder Extension: Key Factors

Selecting the right tool holder extension can make all the difference in achieving accurate results and maximizing efficiency. Consider these factors:

• Material Selection:
• Steel: Cost-effective with good rigidity.
• Tungsten Carbide: Extremely rigid and wear-resistant, ideal for demanding tasks.
• Titanium: Lightweight but less rigid, suitable for lower-stress applications.
• Compatibility: Ensure the extension aligns with your spindle, tool holder, and cutting tool specifications.
• Vibration Control: Look for models with damping technologies to minimize chatter and improve finish quality.
• Thermal Stability: Choose materials that resist heat distortion for high-temperature machining.

Addressing Challenges with Tool Holder Extensions

Despite their advantages, tool holder extensions come with challenges that need to be managed:

• Deflection: Longer extensions may flex under load, affecting precision.
• Vibration: They can amplify vibrations, particularly in high-speed operations.
• Maintenance Needs: Regular cleaning and alignment are essential for optimal performance.

Real-World Applications

Tool holder extensions find critical applications across industries:

• Aerospace: Essential for machining deep cavities in engine components with precision and durability.
• Mold and Die Making: Ideal for creating intricate molds and dies requiring narrow, precise cuts.
• Automotive: Used for machining complex engine parts with deep recesses.

Tips for Success with Tool Holder Extensions

To get the most from your tool holder extensions, follow these tips:

• Evaluate your machining needs—consider the depth and complexity of the task.
• Invest in high-quality materials to reduce deflection and wear.
• Ensure compatibility with your machine and tooling setup.
• Opt for extensions with anti-vibration features for high-speed operations.
• Regularly clean and align the extensions for long-term performance.

A Glimpse Into the Future

Advancements in material science and engineering promise even better performance from tool holder extensions. Improved thermal stability, enhanced damping technologies, and innovative designs are shaping the future of these essential components in modern manufacturing.

Conclusion

Tool holder extensions are game-changers in machining, enabling precision, flexibility, and access to hard-to-reach areas. Whether your work involves aerospace parts, intricate molds, or automotive components, the right extension can elevate your operations to new levels of efficiency and accuracy. Choose wisely, maintain them well, and watch your machining capabilities reach new heights.
