Collet Chuck Holders vs. Shrink-Fit Holders

In CNC machining, the choice of tool holder can significantly impact the overall efficiency, precision, and stability of the machining process. Two widely used tool holding systems—Collet Chuck Holders and Shrink-Fit Holders—offer unique advantages and challenges. But how do you decide which is best suited for your needs? In this blog, we’ll compare these two tool holders in terms of performance, precision, cost, and suitability for different applications, providing insights to help machinists and engineers make the best choice.

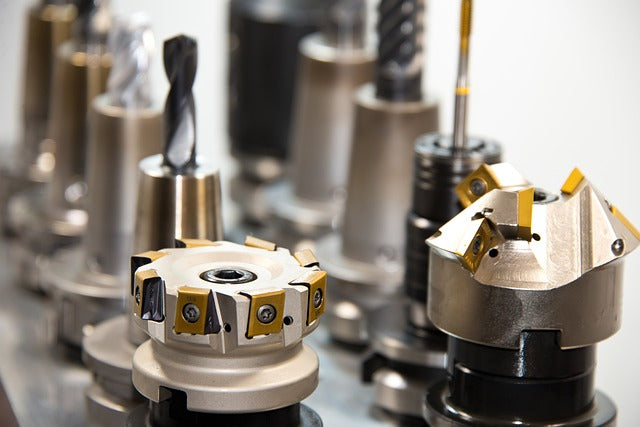

Collet Chuck Holders: A Versatile and Cost-Effective Solution

Collet Chuck Holders are a popular choice in CNC machining due to their simplicity and versatility. These holders use a collet—a cylindrical sleeve that clamps the cutting tool when compressed by a nut. This mechanical clamping system provides a secure grip, making collet chucks suitable for a wide range of machining tasks.

Advantages of Collet Chuck Holders

1. Versatility: Collet chucks can accommodate a wide range of tool diameters, making them a practical option for shops that handle different types of jobs.
2. Cost-Effective: These holders are relatively inexpensive compared to other high-precision options, making them an affordable choice for general machining.
3. Ease of Use: Collet chucks are easy to operate and do not require special equipment or procedures for tool installation and removal, making them ideal for fast-paced environments.
4. Wide Availability: Collet chucks are widely available, and their components, such as collets and nuts, are easily replaceable.

Disadvantages of Collet Chuck Holders

1. Limited Precision: Collet chucks offer moderate precision, with runout (tool misalignment) ranging from 0.005 mm to 0.02 mm. This is acceptable for many tasks but may not be sufficient for high-precision applications.
2. Vibration Issues: The mechanical clamping system can introduce vibration during high-speed machining, which may affect the surface finish and dimensional accuracy.
3. Grip Weakening Over Time: The grip strength of collet chucks may weaken over time, potentially leading to tool slippage and reduced tool life.

Shrink-Fit Holders: Precision and Stability for High-Performance Machining

Shrink-Fit Holders utilize a more advanced technology that relies on thermal expansion to secure the tool. In this system, the tool holder is heated, causing it to expand, and the tool is inserted. As the holder cools, it contracts and firmly clamps the tool in place, offering an extremely tight grip with minimal runout.

Advantages of Shrink-Fit Holders

1. High Precision: Shrink-fit holders provide exceptional precision, with runout as low as 0.003 mm or less, making them ideal for high-performance machining where tight tolerances are critical.
2. Superior Grip Strength: The thermal contraction mechanism provides a uniform and balanced grip on the tool, which greatly reduces vibration and enhances stability.
3. Extended Tool Life: The firm, even grip reduces tool wear, resulting in longer tool life and improved machining performance.
4. Streamlined Design: Shrink-fit holders have a sleek design with minimal external components, reducing the risk of chip buildup and improving cooling during machining.

Disadvantages of Shrink-Fit Holders

1. Higher Cost: Shrink-fit holders are more expensive upfront, both for the holders themselves and for the specialized heating equipment required for installation.
2. Specialized Equipment Required: Shrink-fit holders require a heating device or induction heater to install and remove tools, which adds complexity to the operation.
3. Limited Flexibility: Shrink-fit holders are typically designed for specific tool diameters, meaning that different holders are needed for each tool size.

Key Differences Between Collet Chuck and Shrink-Fit Holders

Precision and Grip Strength

Collet chuck holders offer moderate precision, with runout typically between 0.005 mm and 0.02 mm, which is adequate for general machining tasks. However, for applications requiring high precision, shrink-fit holders are the better choice, offering runout as low as 0.003 mm. In terms of grip strength, shrink-fit holders provide a superior, even grip due to thermal contraction, minimizing tool slippage and reducing vibration during machining.

Vibration Resistance

Vibration is a common issue in high-speed machining. Collet chuck holders, with their mechanical clamping system, can introduce vibrations that negatively affect the surface finish and accuracy of the machined part. Shrink-fit holders excel in this area, offering excellent stability and minimal vibration even during high-speed operations, resulting in smoother machining and higher accuracy.

Ease of Use

Collet chuck holders are known for their simplicity. They do not require any special equipment, and tools can be easily inserted or removed, making them a practical option for shops that need to perform frequent tool changes. In contrast, shrink-fit holders require heating equipment for tool installation and removal, which adds complexity to the process. However, the precision benefits of shrink-fit holders may outweigh this extra step in certain applications.

Cost

Collet chuck holders are generally more affordable, making them a cost-effective solution for shops with budget constraints or those focusing on general machining tasks. Shrink-fit holders, while more expensive upfront, may offer savings over time by improving tool longevity and machining accuracy, especially in high-precision environments.

Tool Life

Shrink-fit holders contribute to longer tool life by providing a consistent, firm grip that reduces wear on the cutting tool. Collet chuck holders, while versatile, may experience tool slippage and vibration, which can shorten tool life and lead to more frequent tool changes.

Flexibility

Collet chuck holders are highly flexible, as they can accommodate different tool sizes by using interchangeable collets. This makes them suitable for a variety of machining tasks. Shrink-fit holders, on the other hand, are designed for specific tool diameters, which limits their flexibility since a different holder is needed for each tool size.

Application Suitability

Both collet chuck holders and shrink-fit holders are valuable in CNC machining, but each shines in different applications:

• Collet Chuck Holders are ideal for general-purpose machining, where moderate precision is sufficient. They are commonly used in job shops that require frequent tool changes and versatility across various tool sizes. Common applications include milling, drilling, and tapping at medium speeds.
• Shrink-Fit Holders are best suited for high-performance machining in industries that demand extreme precision, such as aerospace, automotive, and mold-making. They excel in high-speed operations and heavy-duty milling tasks where stability, precision, and reduced vibration are crucial for success.

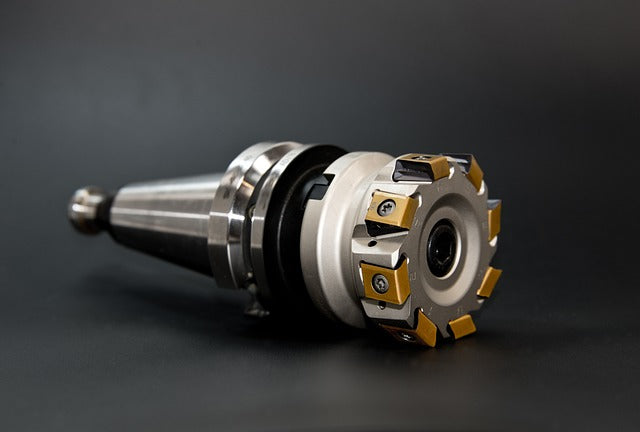

How to Choose the Right Tool Holder for Your Needs

When deciding between collet chuck holders and shrink-fit holders, consider the following factors:

• Precision Requirements: If your machining tasks demand high precision and minimal runout, shrink-fit holders are the superior choice. For general machining where moderate precision is acceptable, collet chuck holders will suffice.
• Budget: Collet chucks are more budget-friendly, making them an attractive option for shops with cost constraints. However, the long-term benefits of shrink-fit holders — such as extended tool life and enhanced precision — can justify the higher initial investment.
• Type of Machining Operations: For high-speed, high-precision operations where stability and accuracy are paramount, shrink-fit holders are worth the investment. For operations that require flexibility, quick tool changes, and varying tool sizes, collet chucks offer excellent versatility.

Conclusion

Both Collet Chuck Holders and Shrink-Fit Holders play important roles in CNC machining, and the right choice depends on the specific needs of your operation. Collet chucks are affordable, versatile, and easy to use, making them ideal for general machining tasks. Shrink-fit holders, on the other hand, provide unmatched precision, grip strength, and stability, making them indispensable for high-performance applications.

By understanding the strengths and limitations of each tool holder, you can make an informed decision that enhances the efficiency and quality of your machining processes.
